robot.model.control.IfBranch Class Reference

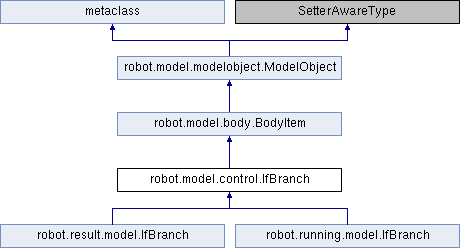

Inheritance diagram for robot.model.control.IfBranch:

Public Member Functions
def	__init__ (self, type=BodyItem.IF, condition=None, parent=None)
def	__str__ (self)
def	body (self, body)
def	visit (self, visitor)
Public Member Functions inherited from robot.model.modelobject.ModelObject
def	__repr__ (self)
def	config (self, **attributes)
	Configure model object with given attributes. More...
def	copy (self, **attributes)
	Return shallow copy of this object. More...
def	deepcopy (self, **attributes)
	Return deep copy of this object. More...

Public Attributes
	body
	condition
	parent
	type

Static Public Attributes
	body_class = Body
tuple	repr_args = ('type', 'condition')
Static Public Attributes inherited from robot.model.body.BodyItem
string	BREAK = 'BREAK'
string	CONTINUE = 'CONTINUE'
string	ELSE = 'ELSE'
string	ELSE_IF = 'ELSE IF'
string	EXCEPT = 'EXCEPT'
string	FINALLY = 'FINALLY'
string	FOR = 'FOR'
string	IF = 'IF'
string	IF_ELSE_ROOT = 'IF/ELSE ROOT'
string	ITERATION = 'ITERATION'
string	KEYWORD = 'KEYWORD'
string	MESSAGE = 'MESSAGE'
string	RETURN = 'RETURN'
string	SETUP = 'SETUP'
string	TEARDOWN = 'TEARDOWN'
string	TRY = 'TRY'
string	TRY_EXCEPT_ROOT = 'TRY/EXCEPT ROOT'
	type = None
string	WHILE = 'WHILE'
Static Public Attributes inherited from robot.model.modelobject.ModelObject
tuple	repr_args = ()

Properties
	id = property
	Branch id omits IF/ELSE root from the parent id part. More...
Properties inherited from robot.model.body.BodyItem
	has_setup = property
	has_teardown = property
	id = property
	Item id in format like s1-t3-k1. More...

Private Member Functions
def	id (self)

Static Private Attributes
list	__slots__ = ['type', 'condition']

Detailed Description

Definition at line 85 of file control.py.

Constructor & Destructor Documentation

__init__()

def robot.model.control.IfBranch.__init__	(		self,
			type = BodyItem.IF,
			condition = None,
			parent = None
	)

Definition at line 90 of file control.py.

Member Function Documentation

__str__()

def robot.model.control.IfBranch.__str__

(

self

)

Definition at line 111 of file control.py.

body()

def robot.model.control.IfBranch.body	(		self,
			body
	)

Definition at line 97 of file control.py.

id()

def robot.model.control.IfBranch.id (   self )

private

Reimplemented from robot.model.body.BodyItem.

Definition at line 104 of file control.py.

visit()

def robot.model.control.IfBranch.visit	(		self,
			visitor
	)

Definition at line 118 of file control.py.

Member Data Documentation

__slots__

list robot.model.control.IfBranch.__slots__ = ['type', 'condition']

staticprivate

Definition at line 88 of file control.py.

body

robot.model.control.IfBranch.body

Definition at line 94 of file control.py.

body_class

robot.model.control.IfBranch.body_class = Body

static

Definition at line 86 of file control.py.

condition

robot.model.control.IfBranch.condition

Definition at line 92 of file control.py.

parent

robot.model.control.IfBranch.parent

Definition at line 93 of file control.py.

repr_args

tuple robot.model.control.IfBranch.repr_args = ('type', 'condition')

static

Definition at line 87 of file control.py.

type

robot.model.control.IfBranch.type

Definition at line 91 of file control.py.

Property Documentation

id

robot.model.control.IfBranch.id = property

static

Branch id omits IF/ELSE root from the parent id part.

Definition at line 102 of file control.py.

---

The documentation for this class was generated from the following file:

• src/robot/model/control.py
