robot.model.control.Try Class Reference

TRY/EXCEPT structure root. More...

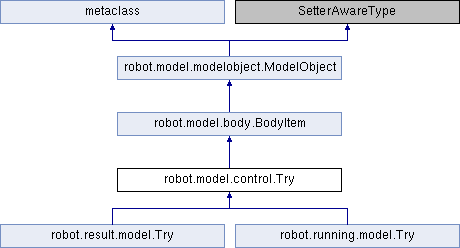

Inheritance diagram for robot.model.control.Try:

Public Member Functions
def	__init__ (self, parent=None)
def	body (self, branches)
def	visit (self, visitor)
Public Member Functions inherited from robot.model.modelobject.ModelObject
def	__repr__ (self)
def	config (self, **attributes)
	Configure model object with given attributes. More...
def	copy (self, **attributes)
	Return shallow copy of this object. More...
def	deepcopy (self, **attributes)
	Return deep copy of this object. More...

Public Attributes
	body
	parent

Static Public Attributes
	branch_class = TryBranch
	branches_class = Branches
	type = BodyItem.TRY_EXCEPT_ROOT
Static Public Attributes inherited from robot.model.body.BodyItem
string	BREAK = 'BREAK'
string	CONTINUE = 'CONTINUE'
string	ELSE = 'ELSE'
string	ELSE_IF = 'ELSE IF'
string	EXCEPT = 'EXCEPT'
string	FINALLY = 'FINALLY'
string	FOR = 'FOR'
string	IF = 'IF'
string	IF_ELSE_ROOT = 'IF/ELSE ROOT'
string	ITERATION = 'ITERATION'
string	KEYWORD = 'KEYWORD'
string	MESSAGE = 'MESSAGE'
string	RETURN = 'RETURN'
string	SETUP = 'SETUP'
string	TEARDOWN = 'TEARDOWN'
string	TRY = 'TRY'
string	TRY_EXCEPT_ROOT = 'TRY/EXCEPT ROOT'
	type = None
string	WHILE = 'WHILE'
Static Public Attributes inherited from robot.model.modelobject.ModelObject
tuple	repr_args = ()

Properties
	else_branch = property
	except_branches = property
	finally_branch = property
	id = property
	Root TRY/EXCEPT id is always None. More...
	try_branch = property
Properties inherited from robot.model.body.BodyItem
	has_setup = property
	has_teardown = property
	id = property
	Item id in format like s1-t3-k1. More...

Private Member Functions
def	else_branch (self)
def	except_branches (self)
def	finally_branch (self)
def	id (self)
def	try_branch (self)

Static Private Attributes
list	__slots__ = []

Detailed Description

TRY/EXCEPT structure root.

Branches are stored in :attr:body.

Definition at line 200 of file control.py.

Constructor & Destructor Documentation

__init__()

def robot.model.control.Try.__init__	(		self,
			parent = None
	)

Definition at line 206 of file control.py.

Member Function Documentation

body()

def robot.model.control.Try.body	(		self,
			branches
	)

Definition at line 211 of file control.py.

else_branch()

def robot.model.control.Try.else_branch (   self )

private

Definition at line 231 of file control.py.

except_branches()

def robot.model.control.Try.except_branches (   self )

private

Definition at line 225 of file control.py.

finally_branch()

def robot.model.control.Try.finally_branch (   self )

private

Definition at line 240 of file control.py.

id()

def robot.model.control.Try.id (   self )

private

Reimplemented from robot.model.body.BodyItem.

Definition at line 249 of file control.py.

try_branch()

def robot.model.control.Try.try_branch (   self )

private

Definition at line 217 of file control.py.

visit()

def robot.model.control.Try.visit	(		self,
			visitor
	)

Definition at line 252 of file control.py.

Member Data Documentation

__slots__

list robot.model.control.Try.__slots__ = []

staticprivate

Definition at line 204 of file control.py.

body

robot.model.control.Try.body

Definition at line 208 of file control.py.

branch_class

robot.model.control.Try.branch_class = TryBranch

static

Definition at line 202 of file control.py.

branches_class

robot.model.control.Try.branches_class = Branches

static

Definition at line 203 of file control.py.

parent

robot.model.control.Try.parent

Definition at line 207 of file control.py.

type

robot.model.control.Try.type = BodyItem.TRY_EXCEPT_ROOT

static

Definition at line 201 of file control.py.

Property Documentation

else_branch

robot.model.control.Try.else_branch = property

static

Definition at line 229 of file control.py.

except_branches

robot.model.control.Try.except_branches = property

static

Definition at line 223 of file control.py.

finally_branch

robot.model.control.Try.finally_branch = property

static

Definition at line 238 of file control.py.

id

robot.model.control.Try.id = property

static

Root TRY/EXCEPT id is always None.

Definition at line 247 of file control.py.

try_branch

robot.model.control.Try.try_branch = property

static

Definition at line 215 of file control.py.

---

The documentation for this class was generated from the following file:

• src/robot/model/control.py
