Represents results of a single keyword. More...

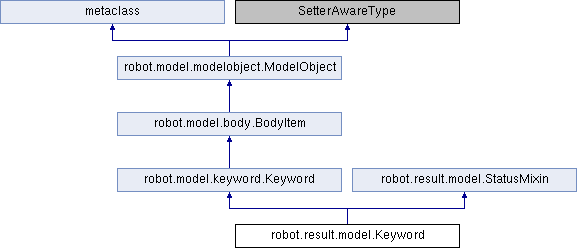

Inheritance diagram for robot.result.model.Keyword:

Public Member Functions
def	__init__ (self, kwname='', libname='', doc='', args=(), assign=(), tags=(), timeout=None, type=BodyItem.KEYWORD, status='FAIL', starttime=None, endtime=None, parent=None, sourcename=None)

def	body (self, body)
	Child keywords and messages as a :class:`~.Body` object. More...

Public Member Functions inherited from robot.model.keyword.Keyword
def	__bool__ (self)

def	__init__ (self, name='', doc='', args=(), assign=(), tags=(), timeout=None, type=BodyItem.KEYWORD, parent=None)

def	__str__ (self)

def	tags (self, tags)
	Keyword tags as a :class:`~.model.tags.Tags` object. More...

def	visit (self, visitor)
	:mod:`Visitor interface <robot.model.visitor>` entry-point. More...

Public Member Functions inherited from robot.model.modelobject.ModelObject
def	__repr__ (self)

def	config (self, **attributes)
	Configure model object with given attributes. More...

def	copy (self, **attributes)
	Return shallow copy of this object. More...

def	deepcopy (self, **attributes)
	Return deep copy of this object. More...

Public Attributes
	body

	endtime

	kwname

	libname

	message

	sourcename

	starttime

	status

Public Attributes inherited from robot.model.keyword.Keyword
	args

	assign

	doc

	parent

	tags

	timeout

	type

Public Attributes inherited from robot.result.model.StatusMixin
	status

Static Public Attributes
	body_class = Body

Static Public Attributes inherited from robot.model.keyword.Keyword
tuple	repr_args = ('name', 'args', 'assign')

Static Public Attributes inherited from robot.model.body.BodyItem
string	BREAK = 'BREAK'

string	CONTINUE = 'CONTINUE'

string	ELSE = 'ELSE'

string	ELSE_IF = 'ELSE IF'

string	EXCEPT = 'EXCEPT'

string	FINALLY = 'FINALLY'

string	FOR = 'FOR'

string	IF = 'IF'

string	IF_ELSE_ROOT = 'IF/ELSE ROOT'

string	ITERATION = 'ITERATION'

string	KEYWORD = 'KEYWORD'

string	MESSAGE = 'MESSAGE'

string	RETURN = 'RETURN'

string	SETUP = 'SETUP'

string	TEARDOWN = 'TEARDOWN'

string	TRY = 'TRY'

string	TRY_EXCEPT_ROOT = 'TRY/EXCEPT ROOT'

	type = None

string	WHILE = 'WHILE'

Static Public Attributes inherited from robot.model.modelobject.ModelObject
tuple	repr_args = ()

Static Public Attributes inherited from robot.result.model.StatusMixin
string	FAIL = 'FAIL'

string	NOT_RUN = 'NOT RUN'

string	NOT_SET = 'NOT SET'

string	PASS = 'PASS'

string	SKIP = 'SKIP'

Properties
	children = property
	List of child keywords and messages in creation order. More...

	keywords = property
	Deprecated since Robot Framework 4.0. More...

	messages = property
	Keyword's messages. More...

	name = property
	Keyword name in format `libname.kwname`. More...

Properties inherited from robot.model.keyword.Keyword
	has_teardown = property
	Check does a keyword have a teardown without creating a teardown object. More...

	name = property

	teardown = property
	Keyword teardown as a :class:`Keyword` object. More...

Properties inherited from robot.model.body.BodyItem
	has_setup = property

	has_teardown = property

	id = property
	Item id in format like `s1-t3-k1`. More...

Properties inherited from robot.result.model.StatusMixin
	elapsedtime = property
	Total execution time in milliseconds. More...

	failed = property
	`True` when :attr:`status` is 'FAIL', `False` otherwise. More...

	not_run = property
	`True` when :attr:`status` is 'NOT RUN', `False` otherwise. More...

	passed = property
	`True` when :attr:`status` is 'PASS', `False` otherwise. More...

	skipped = property
	`True` when :attr:`status` is 'SKIP', `False` otherwise. More...

Private Member Functions
def	children (self)

def	keywords (self)

def	keywords (self, keywords)

def	messages (self)

def	name (self)

def	name (self, name)

Static Private Attributes
list	__slots__

Detailed Description

Represents results of a single keyword.

See the base class for documentation of attributes not documented here.

Definition at line 464 of file model.py.

Constructor & Destructor Documentation

◆ init()

def robot.result.model.Keyword.__init__	(	self,
		kwname = `''`,
		libname = `''`,
		doc = `''`,
		args = `()`,
		assign = `()`,
		tags = `()`,
		timeout = `None`,
		type = `BodyItem.KEYWORD`,
		status = `'FAIL'`,
		starttime = `None`,
		endtime = `None`,
		parent = `None`,
		sourcename = `None`
	)

Definition at line 469 of file model.py.

Member Function Documentation

◆ body()

def robot.result.model.Keyword.body	(	self,
		body
	)

Child keywords and messages as a :class:~.Body object.

Definition at line 491 of file model.py.

◆ children()

def robot.result.model.Keyword.children ( self )

private

Definition at line 530 of file model.py.

◆ keywords() [1/2]

def robot.result.model.Keyword.keywords ( self )

private

Definition at line 501 of file model.py.

◆ keywords() [2/2]

def robot.result.model.Keyword.keywords	(	self,
		keywords
	)

private

Definition at line 509 of file model.py.

◆ messages()

def robot.result.model.Keyword.messages ( self )

private

Definition at line 520 of file model.py.

◆ name() [1/2]

def robot.result.model.Keyword.name ( self )

private

Reimplemented from robot.model.keyword.Keyword.

Definition at line 546 of file model.py.

◆ name() [2/2]

def robot.result.model.Keyword.name	(	self,
		name
	)

private

Reimplemented from robot.model.keyword.Keyword.

Definition at line 553 of file model.py.

Member Data Documentation

◆ slots

list robot.result.model.Keyword.__slots__

staticprivate

Initial value:

= ['kwname', 'libname', 'status', 'starttime', 'endtime', 'message',

'sourcename']

Definition at line 466 of file model.py.

◆ body

robot.result.model.Keyword.body

Definition at line 487 of file model.py.

◆ body_class

robot.result.model.Keyword.body_class = Body

static

Definition at line 465 of file model.py.

◆ endtime

robot.result.model.Keyword.endtime

Definition at line 482 of file model.py.

◆ kwname

robot.result.model.Keyword.kwname

Definition at line 474 of file model.py.

◆ libname

robot.result.model.Keyword.libname

Definition at line 476 of file model.py.

◆ message

robot.result.model.Keyword.message

Definition at line 484 of file model.py.

◆ sourcename

robot.result.model.Keyword.sourcename

Definition at line 486 of file model.py.

◆ starttime

robot.result.model.Keyword.starttime

Definition at line 480 of file model.py.

◆ status

robot.result.model.Keyword.status

Definition at line 478 of file model.py.

Property Documentation

◆ children

robot.result.model.Keyword.children = property

static

List of child keywords and messages in creation order.

    Deprecated since Robot Framework 4.0. Use :att:`body` instead.

Definition at line 528 of file model.py.

◆ keywords

robot.result.model.Keyword.keywords = property

static

Deprecated since Robot Framework 4.0.

    Use :attr:`body` or :attr:`teardown` instead.

Definition at line 499 of file model.py.

◆ messages

robot.result.model.Keyword.messages = property

static

Keyword's messages.

    Starting from Robot Framework 4.0 this is a list generated from messages
    in :attr:`body`.

Definition at line 518 of file model.py.

◆ name

robot.result.model.Keyword.name = property

static

Keyword name in format libname.kwname.

    Just ``kwname`` if :attr:`libname` is empty. In practice that is the
    case only with user keywords in the same file as the executed test case
    or test suite.

    Cannot be set directly. Set :attr:`libname` and :attr:`kwname`
    separately instead.

Definition at line 544 of file model.py.

The documentation for this class was generated from the following file:

src/robot/result/model.py
